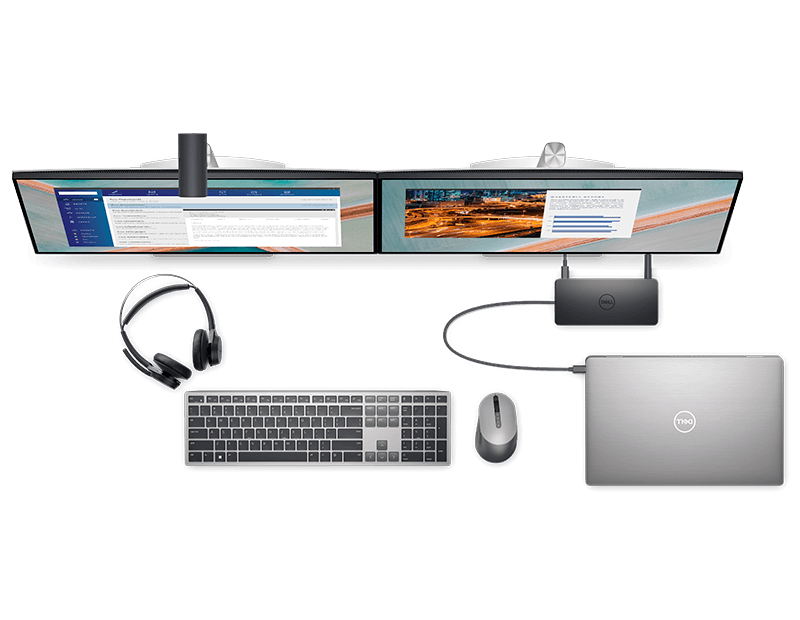

description Dell WD22TB4 Thunderbolt 4 Dock Overview
The Dell WD22TB4 is a modular docking station that allows for future upgrades, making it a smart long-term investment. It is specifically optimized for Dell laptops but works well with most Thunderbolt 4-enabled devices. It provides up to 130W of power delivery for Dell systems, which is industry-leading.
Its modular design means you can replace the internal module if connectivity standards change, reducing e-waste. It is a highly reliable, performance-driven dock that is a staple in many corporate environments and home offices alike.
info Dell WD22TB4 Thunderbolt 4 Dock Specifications
| Audio | 1x Universal audio jack |
| Weight | Approximately 1.5 lbs |
| Ethernet | 1x RJ-45 Gigabit Ethernet |
| Usb Ports | 2x USB-A 3.2 Gen 2, 2x USB-C 3.2 Gen 2 |
| Dimensions | Approximately 6.5 x 3.2 x 1.2 inches |
| Cable Length | 0.8m integrated Thunderbolt 4 cable |
| Connectivity | Thunderbolt 4 |
| Video Outputs | 1x HDMI 2.0, 1x DisplayPort 1.4 |
| Power Delivery | 130W (Dell laptops), up to 100W (other devices) |
| Data Transfer Speed | Up to 40Gbps (Thunderbolt 4) |
| Kensington Lock Slot | Yes |
| Max Video Resolution | Dual 4K@60Hz or Single 8K@30Hz |
balance Dell WD22TB4 Thunderbolt 4 Dock Pros & Cons
- Modular design allows for future upgrades and component swapping to extend product lifespan
- 130W power delivery specifically optimized for Dell laptops ensures reliable charging
- Thunderbolt 4 connectivity provides 40Gbps bandwidth for high-speed data transfer and video
- Multiple video outputs (HDMI and DisplayPort) support dual 4K displays or single 8K display
- Comprehensive port selection including USB-A, USB-C, Ethernet, and audio covers most peripheral needs
- Broad compatibility with non-Dell Thunderbolt 4 devices increases versatility
- Premium pricing compared to non-modular docking alternatives
- Certain advanced features and maximum power delivery are limited to Dell laptops
- Upgrade modules sold separately add to overall cost
- Bulky design may not suit users seeking portable solutions
- May be excessive for users with basic single-monitor docking needs
help Dell WD22TB4 Thunderbolt 4 Dock FAQ
What laptops are compatible with the Dell WD22TB4 dock?
The WD22TB4 works with any Thunderbolt 4-enabled laptop including Dell XPS, Latitude, Precision, and non-Dell systems like HP, Lenovo, and Apple MacBooks. Full 130W power delivery and firmware features are optimized for Dell laptops but standard charging works universally.
How much power does the WD22TB4 deliver to connected laptops?
The dock provides up to 130W of power delivery, which is sufficient to charge most Dell business laptops at full speed while simultaneously powering all connected peripherals. Non-Dell laptops receive standard Thunderbolt 4 power delivery (typically 45-96W depending on the device).
Can I connect multiple monitors to the WD22TB4?
Yes, the dock supports dual 4K displays at 60Hz through its HDMI and DisplayPort outputs simultaneously. It can also drive a single 8K display. The actual resolution depends on your laptop's GPU capabilities and whether you're using MST or SST mode.
What upgrade modules are available for the WD22TB4?
Dell offers optional upgrade modules including a USB-A module, USB-C module, and speaker module that snap onto the dock's front face. These modules provide additional connectivity options and can be purchased separately based on your specific needs.
Does the WD22TB4 support USB-C charging for non-Dell devices?
While optimized for Dell systems, the WD22TB4 will charge any USB-C Power Delivery compatible device. The charging speed depends on the device's power requirements and the USB-C PD specification it supports, with most modern laptops receiving 45-65W.
What is Dell WD22TB4 Thunderbolt 4 Dock?
How good is Dell WD22TB4 Thunderbolt 4 Dock?
How much does Dell WD22TB4 Thunderbolt 4 Dock cost?
What are the best alternatives to Dell WD22TB4 Thunderbolt 4 Dock?
How does Dell WD22TB4 Thunderbolt 4 Dock compare to Kensington SD5700T Thunderbolt 4 Dock?
Is Dell WD22TB4 Thunderbolt 4 Dock worth it in 2026?
What are the key specifications of Dell WD22TB4 Thunderbolt 4 Dock?
- Audio: 1x Universal audio jack
- Weight: Approximately 1.5 lbs
- Ethernet: 1x RJ-45 Gigabit Ethernet
- USB Ports: 2x USB-A 3.2 Gen 2, 2x USB-C 3.2 Gen 2
- Dimensions: Approximately 6.5 x 3.2 x 1.2 inches
- Cable Length: 0.8m integrated Thunderbolt 4 cable
