Jonsbo D500

▲ ▼

language

description Jonsbo D500 Overview

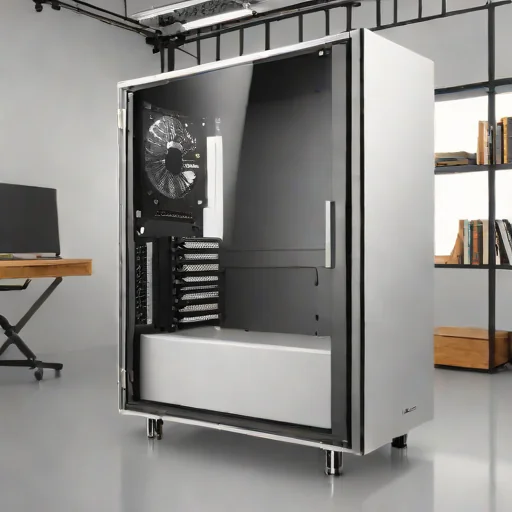

The Jonsbo D500 is a mid-tower PC case featuring a minimalist design with tempered glass side panels and a focus on accommodating large GPUs and extensive storage configurations through its spacious internal layout.

help Jonsbo D500 FAQ

Which motherboard sizes fit in the Jonsbo D500?

The D500 supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305 by 280 millimeters. It provides eight horizontal expansion slots and three vertical slots, with a PCIe riser cable required for vertical GPU mounting. [Jonsbo](https://www.jonsbo.com/Upfiles/down/D500%E8%AF%B4%E6%98%8E%E4%B9%A6-1.pdf)

How many hard drives can the Jonsbo D500 hold?

Its specification lists space for up to 10 3.5-inch hard drives or 11 2.5-inch SSDs. The exact graphics-card clearance depends on how many of those drive positions are populated. [Jonsbo](https://www.jonsbo.com/Upfiles/down/D500%E8%AF%B4%E6%98%8E%E4%B9%A6-1.pdf)

What graphics-card length fits in the Jonsbo D500?

The D500 supports graphics cards from about 340 to 480 millimeters, depending on the number of installed hard drives. It also allows a CPU cooler up to 190 millimeters high and a power supply up to 220 millimeters long. [Jonsbo](https://www.jonsbo.com/Upfiles/down/D500%E8%AF%B4%E6%98%8E%E4%B9%A6-1.pdf)

Can the Jonsbo D500 use a large liquid-cooling radiator?

Yes, it supports 240mm, 360mm, or 420mm radiators at the front and top, plus a 120mm radiator at the rear. A 420mm radiator can be combined with a 360mm radiator in the configuration described by Jonsbo. [Jonsbo](https://www.jonsbo.com/Upfiles/down/D500%E8%AF%B4%E6%98%8E%E4%B9%A6-1.pdf)
